M601 hydraulic glass door hinge

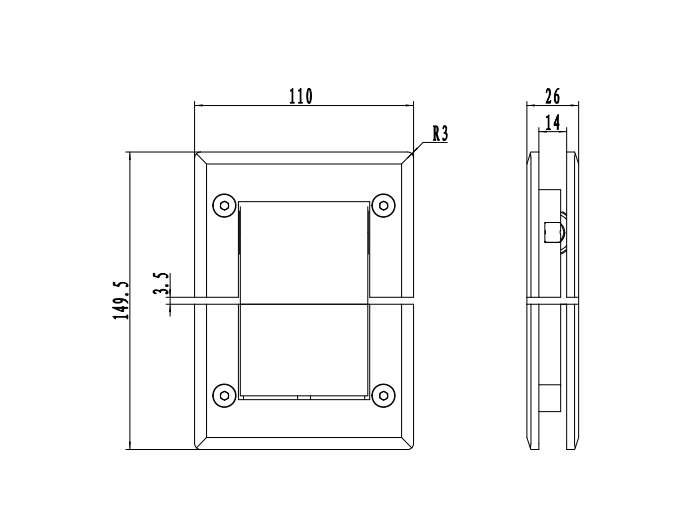

M601 hydraulic glass door hingeM601 hydraulic glass door hinge size

M601 Hydraulic glass door hinge

Features

1.Floor spring function combined, more delicate apperance and easier pushing & pulling.

2. 90°hold-open (optional), 2 speeds adjustable

   No.1 closing speed: 90°- 30° No.2 soft closing speed: 30°- 0°

3. Opening angle of 100°double action.

4. Made by 304 or 316 stainless steel.

Hydraulic Glass Door Hinge

Brand: CCT / PENTAGON

Model selection(according to door weight and width)

Model No. Type Finish Suitable door weight (kg) Suitable door width(mm) Application
M601S Glass-Glass Satin ≤60 1000 Glass door in hotel,office,mall etc, thickness of 8-14mm
M601M Mirror



The issues you most concern

1.No oil Leakage: imported seal material, delicate structure, process control on quality.

2.Return-to-zero: high precision cam and soft material slant gasket ensure the glass door to be completely closed.

3.Hydraulic: double section design of the hydraulic functions, fit clearance between the piston and the cylinder bore within 0.01-0.015mm, cylinder bore made by fine boring and pulse rolling.

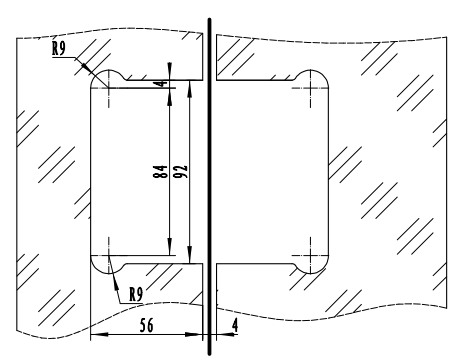

Glass cutout:

M601 hydraulic glass door hinge glass cutout
