M6-90 Hydraulic glass door hinge

Features

1.Floor spring function combined, more delicate apperance and easier pushing & pulling.

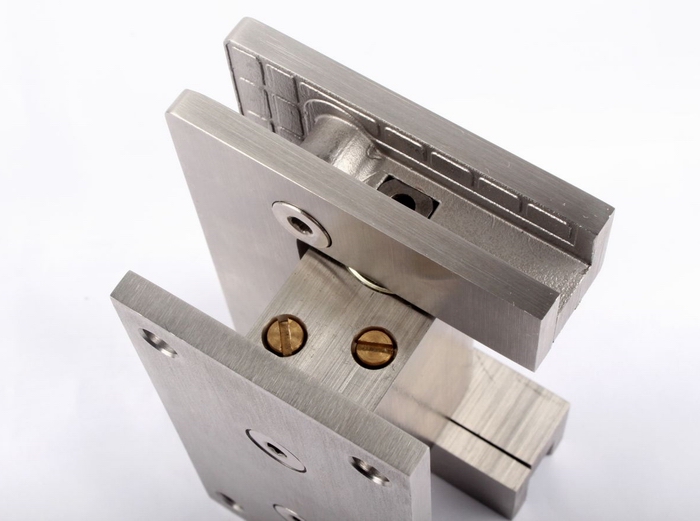

2. 90°hold-open (optional), 2 speeds adjustable

   No.1 closing speed: 90°- 30° No.2 soft closing speed: 30°- 0°

3. Opening angle of 100°double action.

4. Made by 304 or 316 stainless steel.





Hydraulic Glass Door Hinge

Brand: CCT / PENTAGON



Model selection(according to door weight and width)

Model No. Type Finish Suitable door

weight (kg)

Suitable door

width(mm)

Application
M-90S Glass-Wall Satin ≤60 1000 Glass door in hotel,office,mall etc,

thickness of 8-14mm

M-90M Mirror



The issues you most concern

1.No oil Leakage: imported seal material, delicate structure, process control on quality.

2.Return-to-zero: high precision cam and soft material slant gasket ensure the glass door to be completely closed.

3.Hydraulic: double section design of the hydraulic functions, fit clearance between the piston and the cylinder bore within 0.01-0.015mm, cylinder bore made by fine boring and pulse rolling.

Glass cutout:

M611 hydraulic glass door hinge glass cutout
