M2 hydraulic door closer hinge hold open

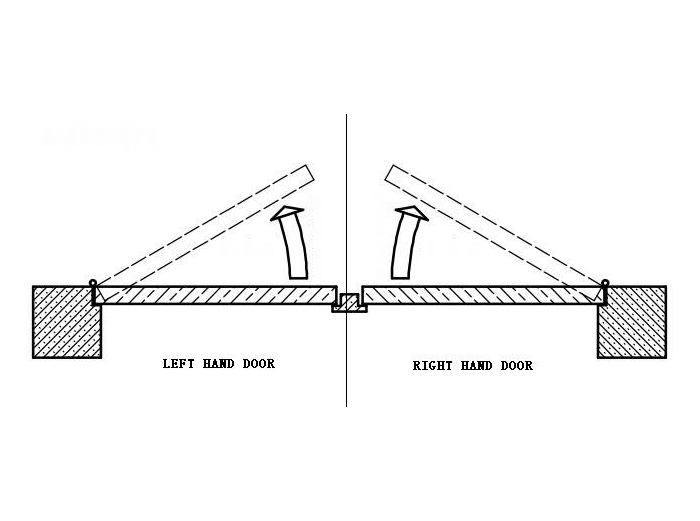

M2 hydraulic door closer hinge hold openM2 hydraulic door closer hinge up,hold openM2 hydraulic door closer hinge adjusting screwm2 normal shape sizedoor opening direction1

M2 Hydraulic door closer hinge (Normal shape)

Features

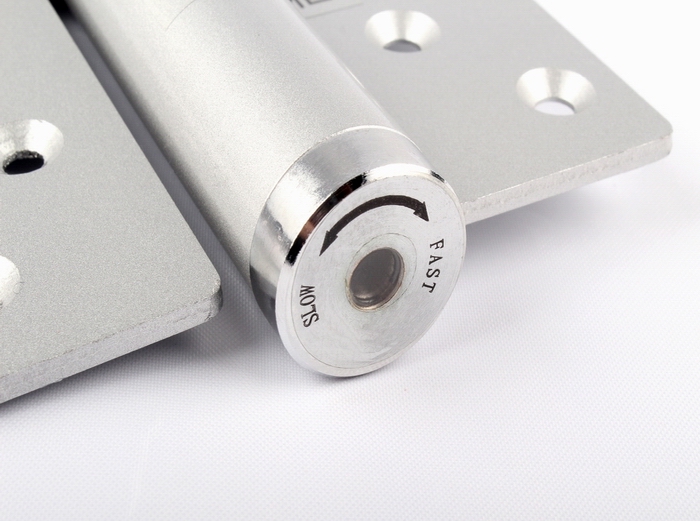

1. Closing speed adjustable in different occasions to secure safety entry of the old and disable.

2.  Anti-pinch function: closing speed will obviously slow down at 25° even when external force or strong wind applied to the door.

3. Working temprature -30~60℃.



Hydraulic Door Closer Hinge (M2)

Compliant with CE EN1154

Suitable for various of security doors, fire doors, bathroom doors and other decoration projects

Model

Suitable door

weight (kg)

Suitable door

width (mm)

Structure

Function




M2-40

40

850

Spring x 1

Hydraulic x 1



Hold

open at 90°

3  Speed

Hydraulic adjustable



M2-60

60

850~1000

Spring x 1

Hydraulic x 1

Empty x 1



M2-80

80

1000

Spring x 2

Hydraulic x 1





Note: Material is quality carbon steel

Type: Normal shape

Max. opening angle: 180°

Color: Silver / Gold lacquer





Issues you most concern

1. No oil Leakage: imported seal material, delicate structure, process control on quality.

2. Anti-pinch function: hydraulic flow control.

3. Load capacity: advanced heat treatment technology and quality for inner parts

4. Lifespan: 100,000 cycles, precision manufacturing technology, small but powerful torsional springs, durable hydraulic design.
