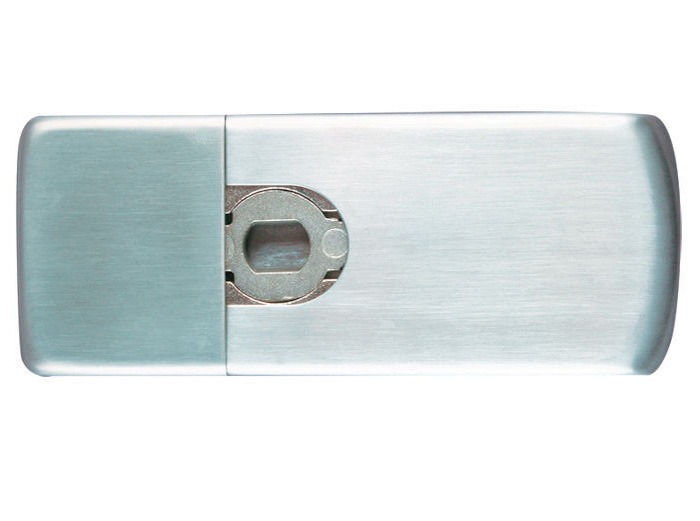

D1-100 Concealed floor spring (hydraulic patch/flat cover/100kgs)

Features:

1. Bottom patch and floor spring function combined, no need to dig the ground, easy installation and saving labor.

2. Unique base design, 5mm backward and forward, 7mm left and right, 5° alignment adjustment.

3. Opening angle of 140°double action, 90°hold-open, 2 speeds adjustable.  No.1 closing speed: 85°- 30° No.2 soft closing speed: 30°- 0°.

4. SS304 cover plates 1mm thick, rust resistant, no ponding on the floor and easy to clean.

Non Digging Concealed Floor Spring / Hydraulic patch

Brand:CCT / PENTAGON

Compliant with CE EN1154

Model selection(according to door weight and width)

Model No. Finish Suitable doorweight (kg) Suitable doorwidth(mm) Application
D1-100S Satin ≤100 ≤1000 Glass door in hotel,office,mall etc,thickness of 10-15mm
D1-100M Mirror ≤100 ≤1000 Glass door in hotel,office,mall etc,thickness of 10-15mm

Issues you most concern:

1. No oil leakage: imported seal material, manufacturing precision controlled within 0.005 and 0.01mm, process control on quality.

2. Anti-wind capability: precision manufacturing technology ensure strong closing force.

3. Load capacity: quality assembling parts and reasonable structure.

4. Lifespan: 500,000 cycles, quality spring and reasonable structure.

Packing information:

Qty: 6pcs/ctn

Meas: 43.5*26*17cm

G.W.: 16kgs

300pcs/cbm
